GRAPH

Graph

What is a graph ?

In programming, a graph is a common data structure that consists of a finite set of nodes (or vertices) and edges. The edges connect the vertices to form a network. An edge can be uni-directional or bi-directional. Edges are also known as arrows in a directed graph and may contain values that show the required cost to traverse from one vertex to another.

Types of graphs

1. Undirected graph :

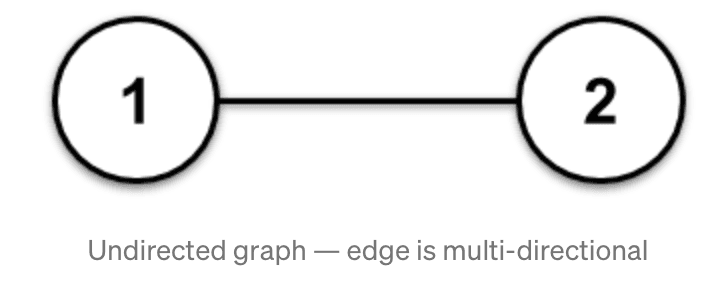

In an undirected graph, an edge connects two nodes in both directions as a two-way street does.

function Edge(src, dest){
  this.src = src;
  this.dest = dest;
}

const Graph = function(edges){
  // A list of lists to represent an adjacency list
  let adj = new Map();

  // add edges to the directed graph
  for (let current of edges) {
    // allocate new node in adjacency list from src to dest
    const {src, dest} = current;
    if(adj.has(src)){
      adj.get(src).push(dest);
    }else{
      adj.set(src, [dest]);
    }

    // uncomment next lines for undirected graph
    // allocate new node in adjacency list from dest to src
    if(adj.has(dest)){
      adj.get(dest).push(src);
    }else{
      adj.set(dest, [src]);
    }
  }

  this.add = function(edge) {
    const {src, dest} = edge;
    if(adj.has(src)){
      adj.get(src).push(dest);
    }else{
      adj.set(src, [dest]);
    }

    // uncomment next lines for undirected graph
    // allocate new node in adjacency list from dest to src
    if(adj.has(dest)){
      adj.get(dest).push(src);
    }else{
      adj.set(dest, [src]);
    }

  }

  this.remove = function(edge) {
    const {src, dest} = edge;
    let srcList = adj.get(src);
    srcList = srcList.filter(e => e !== dest);

    if(srcList.length === 0){
      adj.delete(src);
    }else{
      adj.set(src, srcList);
    }

    // uncomment next lines for undirected graph
     let destList = adj.get(dest);
     destList = destList.filter(e => e !== src);

     if(destList.length === 0){
       adj.delete(dest);
     }else{
       adj.set(dest, destList);
     }

    return true;
  }

  this.print = function() {
    let n = adj.size;

    for (let src of adj.keys()) {
      // print current vertex and all its neighboring vertices
      let str = "";
      for (let dest of adj.get(src)) {
        str += "(" + src + " ——> " + dest + ")";
      }
      console.log(str);
    }
  }

  //Return graph
  this.getList = () => adj;
}




Input:
const arr = [new Edge(0, 1), new Edge(2, 0),
             new Edge(2, 1), new Edge(3, 2),
             new Edge(4, 5), new Edge(5, 4)];

const graph = new Graph(arr);
graph.add(new Edge('c', 'd'));
graph.print();

Output:
"(0 ——> 1)(0 ——> 2)"
"(1 ——> 0)(1 ——> 2)"
"(2 ——> 0)(2 ——> 1)(2 ——> 3)"
"(3 ——> 2)"
"(4 ——> 5)(4 ——> 5)"
"(5 ——> 4)(5 ——> 4)"
"(c ——> d)"
"(d ——> c)"

2. Directed graph :

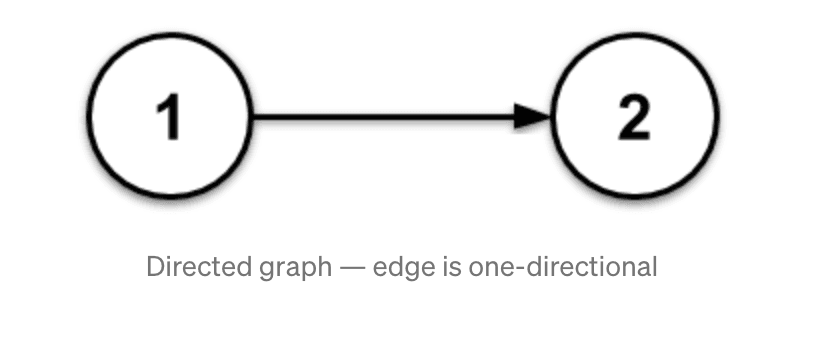

A directed graph only has directed edges. They can be imagined like a one-way street. If an edge leads from n1 to n2 it does not also lead from n2 to n1.

/*Directed graph*/

function Edge(src, dest){
  this.src = src;
  this.dest = dest;
}

const Graph = function(edges){
  // A list of lists to represent an adjacency list
  let adj = new Map();

  // add edges to the directed graph
  for (let current of edges) {
    // allocate new node in adjacency list from src to dest
    const {src, dest} = current;
    if(adj.has(src)){
      adj.get(src).push(dest);
    }else{
      adj.set(src, [dest]);
    }
  }

  this.add = function(edge) {
    const {src, dest} = edge;
    if(adj.has(src)){
      adj.get(src).push(dest);
    }else{
      adj.set(src, [dest]);
    }
  }

  this.remove = function(edge) {
    const {src, dest} = edge;
    let srcList = adj.get(src);
    srcList = srcList.filter(e => e !== dest);

    if(srcList.length === 0){
      adj.delete(src);
    }else{
      adj.set(src, srcList);
    }

    return true;
  }

  this.print = function() {
    let n = adj.size;

    for (let src of adj.keys()) {
      // print current vertex and all its neighboring vertices
      let str = "";
      for (let dest of adj.get(src)) {
        str += "(" + src + " ——> " + dest + ")";
      }
      console.log(str);
    }
  }

  //Return graph
  this.getList = () => adj;
}

Input:
const arr = [new Edge(0, 1), new Edge(1, 2),
                new Edge(2, 0), new Edge(2, 1), new Edge(3, 2),
                new Edge(4, 5), new Edge(5, 4)];

const graph = new Graph(arr);
graph.add(new Edge('c', 'd'));
graph.print();

Output:
"(0 ——> 1)"
"(1 ——> 2)"
"(2 ——> 0)(2 ——> 1)"
"(3 ——> 2)"
"(4 ——> 5)"
"(5 ——> 4)"
"(c ——> d)"
